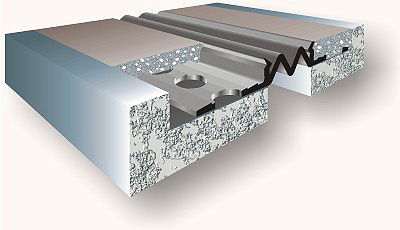

SM-Series
Smidcrete® Single-Ply Membrane System
The SM-Series model is best suited for installation on intermediate slabs of multi-level garages, as well as buried joint applications on garage roof slabs.
The Smidcrete®/SM-Series System is an expansion joint product designed for parking garage structures. The SM-Series model is best suited for installation on intermediate slabs of multi-level garages, as well as buried joint applications on garage roof slabs (see Smidcrete® "Buried Joint" section).
The design features an extruded preformed elastomeric membrane, which is fusion-bonded to the concrete slab deck with Smidcrete® Elastomeric Concrete. The installed system provides a watertight seal while flexing in response to movement in the expansion joint width, as the structure is subjected to seasonal temperature changes.
| Open PDF | SM Specifications |
| Open PDF | SM Data Sheet |
| TD-SM-01 Slab to Slab Detail | |
| Open PDF | TD-SM-02 Slab to Wall Detail with Steel Retainer Plate |
| Open PDF | TD-SM-03 Slab to Wall Detail with Fastening Bar Surface Mount |
| Open PDF | TD-SM-04 Slab to Wall Detail with Fastening Bar Recess |
| Open PDF | TD-SM-05 Directional Change at Column/Wall with Steel Retainer Plate |
| Open PDF | TD-SM-06 Directional Change at Column/Wall with Fastening Bar Surface Mount |
| Open PDF | TD-SM-07 Directional Change at Column/Wall with Fastening Bar Recess |
| Open PDF | TD-SM-08 Wall to Wall Surface Mount |
| Open PDF | TD-SM-09 Wall to Wall Recess |
| Open PDF | TD-SM-10 Upturn Detail |
| Open PDF | TD-SM-11 Upturn at Wall or Column Detail |
| Open PDF | TD-SM-12 Shear Wall or Column Detail |
| Open PDF | TD-SM-13 Mastic Waterproofing |
| Open PDF | TD-SM-14 Cover Plate for Steel Wheel Impact |
| Open PDF | TD-SM-15 Asphalt Top Deck (Snow Plow Detail) |
| Open PDF | TD-SM-16 Stainless Steel Cover Plate |

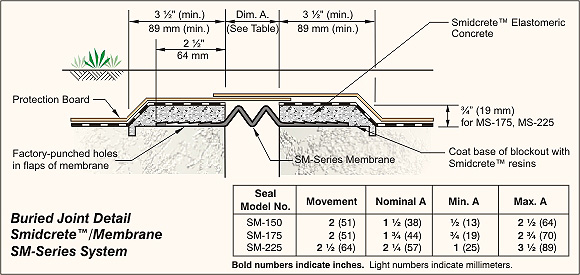

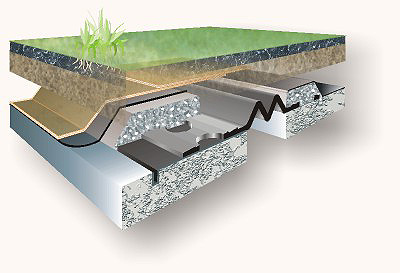

Buried Joint
Smidcrete® Single-Ply Membrane "End-Dam" System for Buried Joint Application SM-Series
Replaces the antiquated reinforced "loop joints" that have proven ineffective as long-term sealing systems.
The Smidcrete® / SM-Series System is specifically designed for buried joint applications. The design features a preformed elastomeric membrane which is fusion-bonded to the concrete roof slab with Smidcrete® Elastomeric Concrete. The SM-Series shapes replace the antiquated reinforced "loop joints" that historically have proven ineffective as long-term sealing systems. The Smidcrete® buried joint system isolates the expansion joint, waterproofs the joint with a pre-formed seal, and creates an "End-Dam" system, while flexing in response to movement in the expansion joint width, as the structure is subjected to seasonal temperature changes.

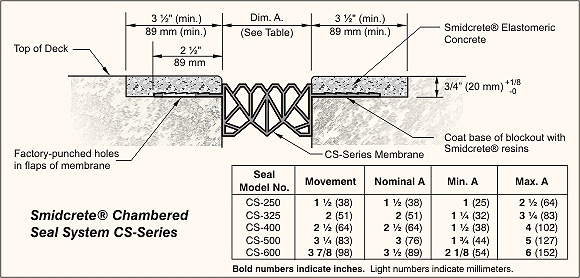

CS-Series
Smidcrete® Chambered Seal System CS-Series
A heavy-duty system best suited for installation on exposed top slab decks and intermediate slabs of multi-level garages.
The Smidcrete®/SM-Series System is specifically designed for buried joint applications. The design features a preformed elastomeric membrane which is fusion-bonded to the concrete roof slab with Smidcrete® Elastomeric Concrete. The SM-Series shapes replace the antiquated reinforced "loop joints" that historically have proven ineffective as long-term sealing systems. The Smidcrete® buried joint system isolates the expansion joint, waterproofs the joint with a pre-formed seal, and creates an "End Dam" system, while flexing in response to movement in the expansion joint width, as the structure is subjected to seasonal temperature changes.
| Open PDF | TD-CS-01 Slab to Slab Detail |
| Open PDF | TD-CS-02 Slab to Wall Detail with Steel Retainer Plate |
| Open PDF | TD-CS-03 Slab to Wall Detail with Fastening Bar Surface Mount |
| Open PDF | TD-CS-04 Slab to Wall Detail with Fastening Bar Recess |
| Open PDF | TD-CS-05 Directional Change at Column/Wall with Steel Retainer Plate |
| Open PDF | D-CS-06 Directional Change at Column/Wall with Fastening Bar Surface Mount |
| Open PDF | TD-CS-07 Directional Change at Column/Wall with Fastening Bar Recess |
| Open PDF | TD-CS-08 Wall to Wall Surface Mount |
| Open PDF | TD-CS-09 Wall to Wall Recess |
| Open PDF | TD-CS-10 Upturn Detail |
| Open PDF | TD-CS-11 Upturn at Wall or Column Detail |
| Open PDF | TD-CS-12 Shear Wall or Column Detail |
| Open PDF | TD-CS-13 Mastic Waterproofing |
| Open PDF | TD-CS-14 Cover Plate for Steel Wheel Impact |

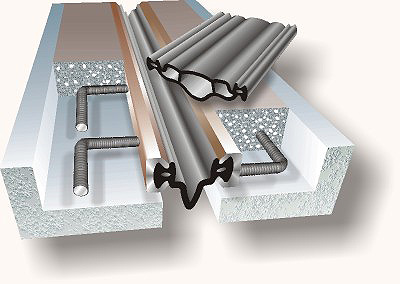

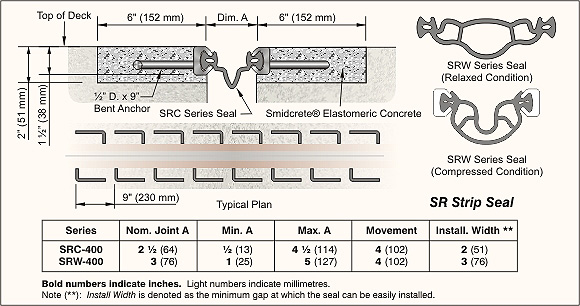

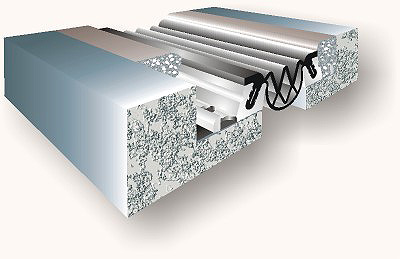

SR-Series
Smidcrete® Steel Rail System SR-Series/Strip Seal
Single seal system that forms a completely watertight closure and handles multi-directional movements to 4 inches.
The SR Strip Seal is a single seal system that forms a completely watertight closure of the gap of an expansion joint and handles multi-directional movements to 4". The system features an elastomeric sealing element that, by its internal folding action, absorbs the entire movement scheme at the joint and is gripped in steel edge sections secured to the deck via anchorage and Smidcrete® Elastomeric Concrete.
| TD-SR-01 Slab to Slab Detail C Seal | |
| Open PDF | TD-SR-02 Slab to Wall Detail W Seal |

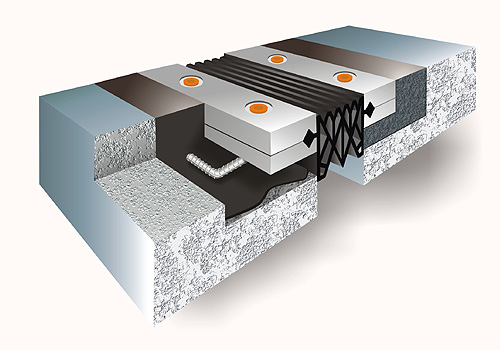

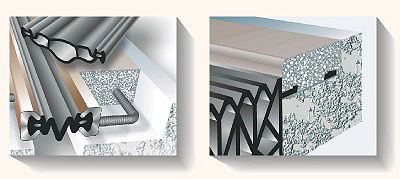

HD-Series

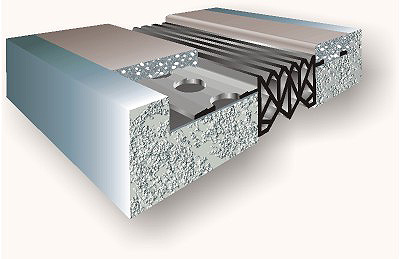

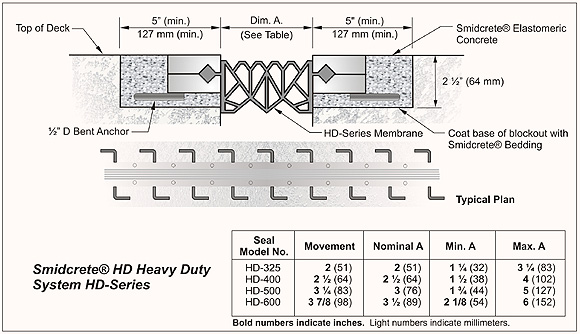

HD Heavy Duty Parking Deck System
High Impact System designed to minimize damage from snow removal on parking decks and handle multi-directional movements.
Smidcrete® HD Heavy Duty System is designed specifically for parking garage structures. The system can withstand high impact loading and handle multi-directional movements. The seal can be replaced and heat welded to similar seal in the CS-series and thereby reduce installation and maintenance costs.
Elastometric Concrete Material
Urethane/epoxy blend that resists wear due to impacting of vehicular loadings, and resists cracking at low temperatures.
The Smidcrete® C is a rapid-setting ambient-cured polyurethane material compounded with a silicate/sand mixture to form a durable nosing material for expansion joint applications. It has excellent flexibility and load bearing characteristics, and is not prone to cracking or spalling.

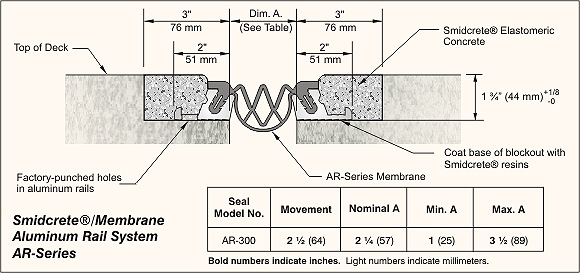

Applications include parking decks, access ramp and bridge decks where vehicles generate excessive loadings. It can be used in conjunction with a number of expansion joint systems, including the SM, CS, AR, SR & HD Systems.
The Smidcrete® C Elastomeric Concrete secures the expansion joint profile to the concrete deck. The product outperforms traditional nosing materials such as concrete, epoxy and asphalts. These materials historically experienced breakdowns due to cracking, and therefore allowed moisture and corrosives to penetrate and deteriorate the concrete deck. The result enabled the moisture to go around the expansion joint system to the joint gap, and ultimately debond and break apart the nosing itself.
